DINAMO – Digitalisation Route for Dimensional Nanometrology

Projects

Advancing traceability in dimensional nanometrology

Through the European project DINAMO (Digitalisation Route for Dimensional Nanometrology), VSL collaborates with international partners to develop a digitalisation route for dimensional nanometrology. The project focuses on improving the traceability, reliability and reproducibility of measurement results, with a particular emphasis on scanning probe microscopy.

Would you like to know more about our services?

Our experts are happy to help.

Walter Knulst
Principal Scientist Length & Optics

wknulst@vsl.nl

Challenge: linking raw data to final results

In dimensional nanometrology, the connection between raw measurement data and the final calculated parameter value is often lost because acquisition and analysis steps are not fully documented. As a result, different processing approaches may lead to different outcomes from the same dataset.

DINAMO addresses this challenge by developing a digital workflow in which all steps between data acquisition and data processing are automatically captured. This creates a clear and traceable link between the original measurement data and the final reported result.

VSL’s contribution

VSL contributes to the identification and implementation of metadata solutions for virtual calibration standards. This includes documenting key calibration parameters such as signal amplitude, waveform, frequency and phase when applying smart calibration samples.

The virtual standards also offer unique capabilities, including optimisation of data acquisition processes and the reduction of 1/f noise in measurement data, supporting more accurate and reliable measurements.

Expected outcomes

The project will deliver new virtual calibration standards for step-height and lateral measurements. Key project activities include:

Defining specifications for virtual calibration standards;
Performing uncertainty analyses;
Developing and manufacturing new virtual calibration standards;
Participating in interlaboratory comparisons to validate the developed standards.

DINAMO supports the digital transformation of dimensional nanometrology and contributes to future measurement solutions for advanced technology and semiconductor applications.

More information about the research can be found on the project website.

“The project receives funding from the European Partnership on Metrology, co-funded by the European Union’s Horizon Europe Research and Innovation Programme and by the participating states.”

Projects

Our expertise in practice

VSL advances quantum chip development through the QORRELATIONS project

Discover how VSL contributes to the QORRELATIONS project by developing traceable measurement methods and validation techniques for reliable quantum chip technology.

Metrology for Ammonia as an Energy Carrier

Given its higher volumetric energy density compared to hydrogen, ammonia is expected to play a significant role in long-term energy storage. To ensure a safe and fair rollout of ammonia as an energy carrier, it is essential to establish infrastructure for measuring quantity, quality, and emissions.

Metrology for Hydrogen Vehicles 3

This project focuses on developing faster methods for hydrogen flow calibrations (using master meters), combining flow calibrations with sampling for quality measurements, creating test protocols for gas composition sensors, and investigating potential new impurities.

New standards for calibration of spectroradiometric measurement instruments

Developing new standards for calibration of spectroradiometric measuring instruments, with VSL focusing primarily on new sources and detector-based methods.

Sensor engineering for vibration isolation in Einstein Telescope

Project SENVIDET contributes to the development of the Einstein Telescope through innovation in the field of sensors for vibration isolation.

Traceable machine vision systems for digital industrial applications

Machine vision systems are crucial to many high-value industries, where Europe is globally competitive, and to the EU objectives for digital transformation and the Green Deal.

Digital metrological twins for advanced manufacturing

Supporting advanced production processes using so-called Digital Metrology Twins (D-MTs), where VSL will mainly work on a digital representation of tactile measurements on the CMM.

Virtual experiments and digital twins (ViDiT)

Virtual experiments and digital twins are key enabling technologies to achieve and realise European strategic policies devoted to sustainability and digitalisation within the complex framework of Industry 4.0 and the European Green Deal.

Metrology for Aerosol Optical Properties (MAPP 19ENV04)

The goal of this project is to enable the Si-traceable measurements of column-integrated aerosol optical properties retrieved from the passive remote sensing of atmosphere using solar and lunar measurements.

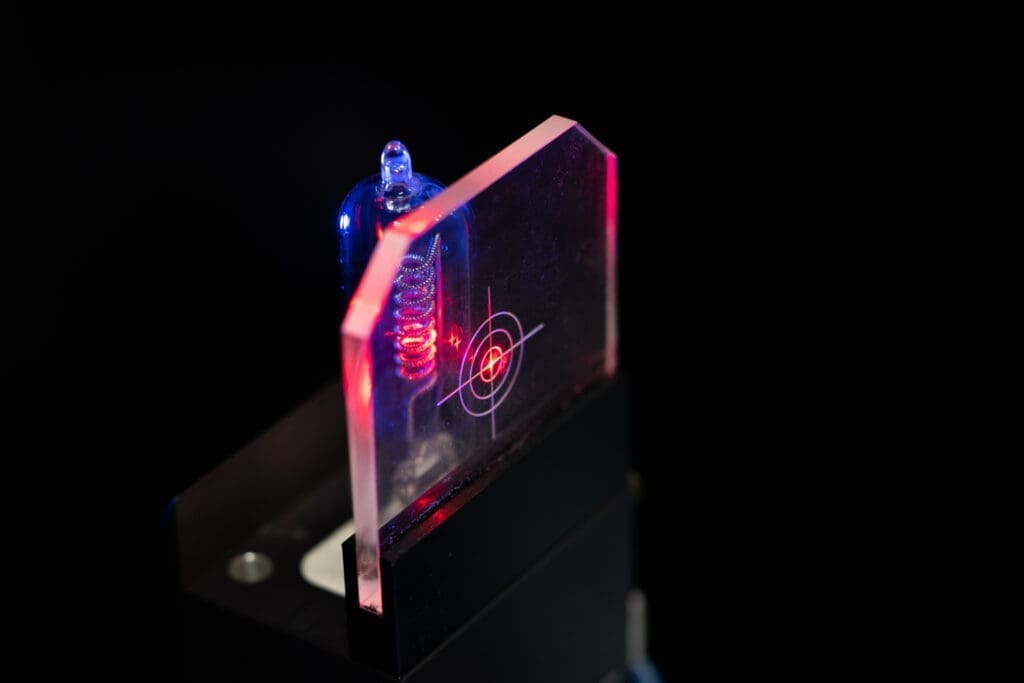

RMG Research on optical microscopes (Research Mobility Grant 20FUN02-RMG1)
